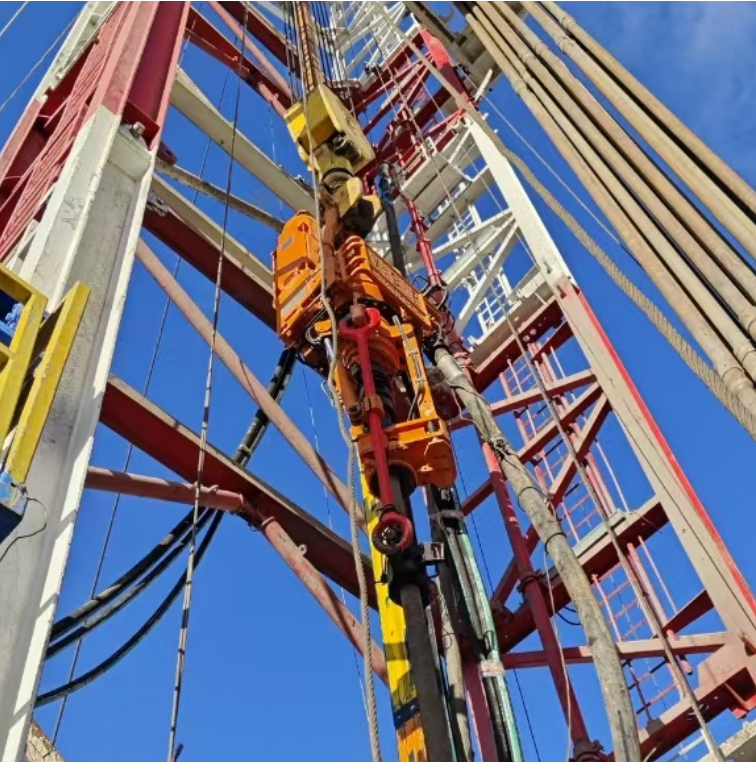

350 Ton Top Drive System with VFD Control for Max 5000m Drilling Rig, DQ50-BQ

Short Description:

VSP have been engaged in the develepment and upgrade of top drive system. With 16 years of experience in the top drive drilling system, we have established a complete manufacturering and service system as well as OEM spare parts & tools in this field.

The professional team and facilities keep our technology and qaulity on the top level in the world TDS drilling industry.

As a new competitive standard , the Model DQ50-BQ top drive adapts many upgraded design and optimize the features,that make it become one of most advanced oil and gas well drilling machine system.

We strive to build lasting relationships with customers based on consistent performance,This is achieved by ensuring maximum attention with excellent service,quality products, competitive prices.and prompt delivery

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

Typical Feature of DQ50-BQ

General Configuration of DQ50-BQ

1. Folding guide Rails: Top drive installation is safe, quick and convenient.

2. Equipped with 360° swivel head rotation function.

3. The pulley adopts a double-wheel structure to avoid single force on the roller and extend the service life of the roller.

4. IBOP Rack and Pinion Drive Mechanism: Ensures precise and accurate switching of IBOP (Internal Blow Off Preventer).

5. Inclined hanging backup tong: Replacing tong teeth and tong teeth seat becomes faster and more convenient.

6. Hydraulic Radiator: Extends the life of the hydraulic system.

7. The internal counterbalance is adopted: which makes the jump safe and stable. No other components are needed to hang the big hook or the traveling carriage, and it can be hung directly.

8. The cross-sectional size of the top drive is small: and it is more suitable for derricks.

General Configuration of DQ50-BQ

1) The main transmission system adopts a AC frequency conversion asynchronous motor, ABB ACS880 AC frequency conversion system.

2) The lubrication system in gear box adopts the combination of splash lubrication and forced lubrication, with a high lubrication efficiency.

3) The Pipe Handler adopts the design of L-shaped back-up tong , which is

4) The Siemens programmable logic controller (PLC) is used to control the auxiliary system, which has multi functions such as security interlock, monitoring and alarm to ensure the safety and reliability of the system.

5) The hydraulic system adopts integrated upper mounted structure with high reliability and easy to debugging and maintenance. The hydraulic source is composed of ABB explosion-proof motor and YUKEN hydraulic pump, which only needs to be opened while the operation of tripping, makeup&breakout and directional drilling. There is no need to start the hydraulic pump when drilling, and the hydraulic system is very low heat.

Specification:

Items	Data	(British System)
Nominal drilling depth (114mm drill pipe)	5000m
Rated Load capacity	3150 KN	350 ton
Working height (3.3m elevator link)	6600mm	21.56ft
Rated continuous output torque	70 KN.m	4792.2 lb.ft
Max. Torque of breakout	100 KN.m	6846 lb.ft
Static maximum brake torque	70 KN.m	4792.2 lb.ft
Speed range of main shaft (stepless adjustable)	0~220 r/min
Drill pipe range of back-up tong clamping	85-220mm
Max bore hole of back up tong	200 mm	7.87 in
Mud circulation	64 mm	2.5 in
Rated pressure of the mud circulation	35/52 MPa	5000/7500 Psi
Rotation angle of rotating head	0-360°
Speed of rotating head	2~5r/min
Max.tilt angle of elevator link	Forward 30°, backward 55°
IBOP(double ball valves )	Φ187 6-5/8 REG 70MPa
Saver Sub ( standard )	Φ187 6-5/8 REG NC50
Working Pressure of hydraulic system	0~14Mpa	0~2280 Psi
Voltage of EX solenoid valves	24 VDC
Rated Power of Main motor	800 KW	1073 HP

Rated Speed of Main motor	1200 r/min
Rated Torque of Main motor	2308 N·m	1702.29 lb.ft
Rated Voltage of Main motor	600 VAC
Rated frequency of Main motor	61 Hz
Rated current of Main motor	365 A
Max. speed of Main motor	2400 r/min
Electricity of VFD room	600 VAC/50Hz
Suitable ambient temperature	-45ºC~55ºC
Altitude	≤1,200 m	≤3,937ft
Distance between center of main shaft and center of guide rail	532.5mm	1.747ft
Incoming wire voltage of VFD room	575~625 VAC
Incoming wire frequency of VFD room	47~53 Hz
