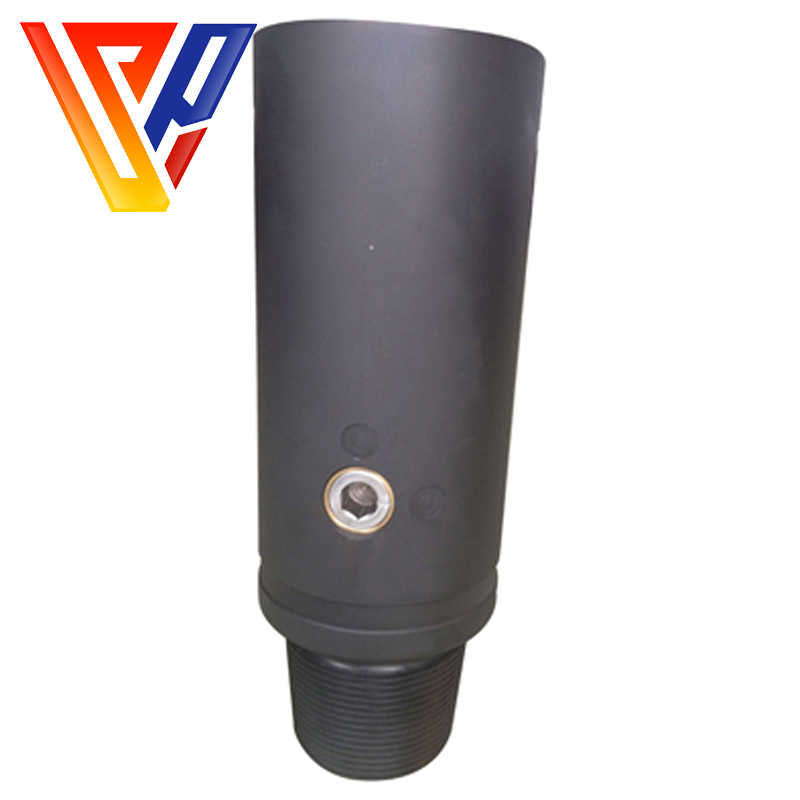

Varco Upper Lower Ibop Internal Blowout Preventer for TDS8-SA TDS11-SA 114706-500
| 110103-500 | UPPER IBOP, PH50 ASSY, 6-5/8 X 6-5/8, C/W CERT |
| 110103-501 | ASSY, UPPER IBOP |
| 114706-500 | ASSY,LWR IBOP,65/8X65/8W/REL GRV-STD, C/W CERT |
| 114706-503 | ASSY,LWR IBOP 65/8X65/8 NAM POCKET, C/W CERT |
| 91138-DWG | Drawing, Lower IBOP Assembly |
| 30173887-DWG | Drawing, Upper IBOP Assembly |
