Exceptional Performance Starts with Precise Control
In modern oil and gas drilling operations, the Top Drive system is a key piece of equipment that enhances efficiency, safety, and automation. The Valve Plate, acting as the “heart” and “traffic hub” within the Top Drive’s hydraulic and control system, plays a critical role. Its reliability directly determines whether the entire Top Drive system can operate efficiently and stably.
Our company specializes in the petroleum machinery sector, designing and manufacturing high-precision, high-durability Valve Plates for various Top Drive systems. They are your reliable choice for extreme drilling conditions.

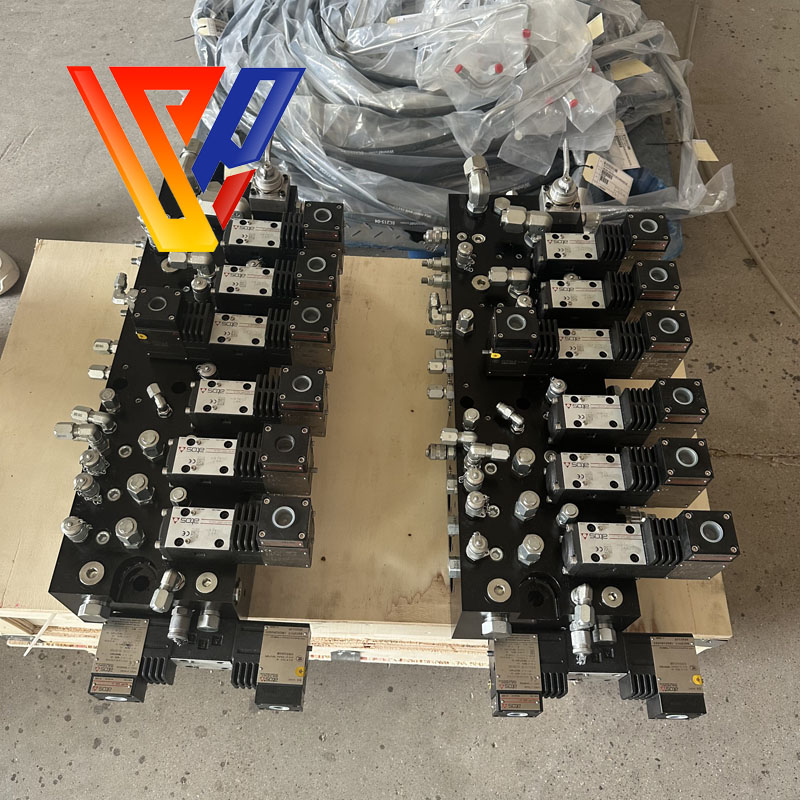

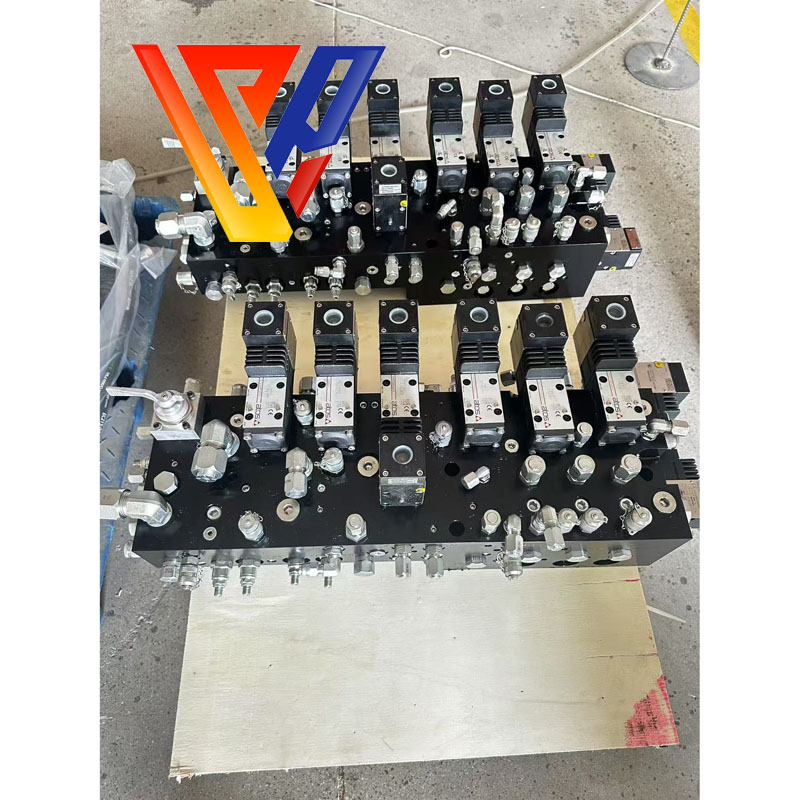

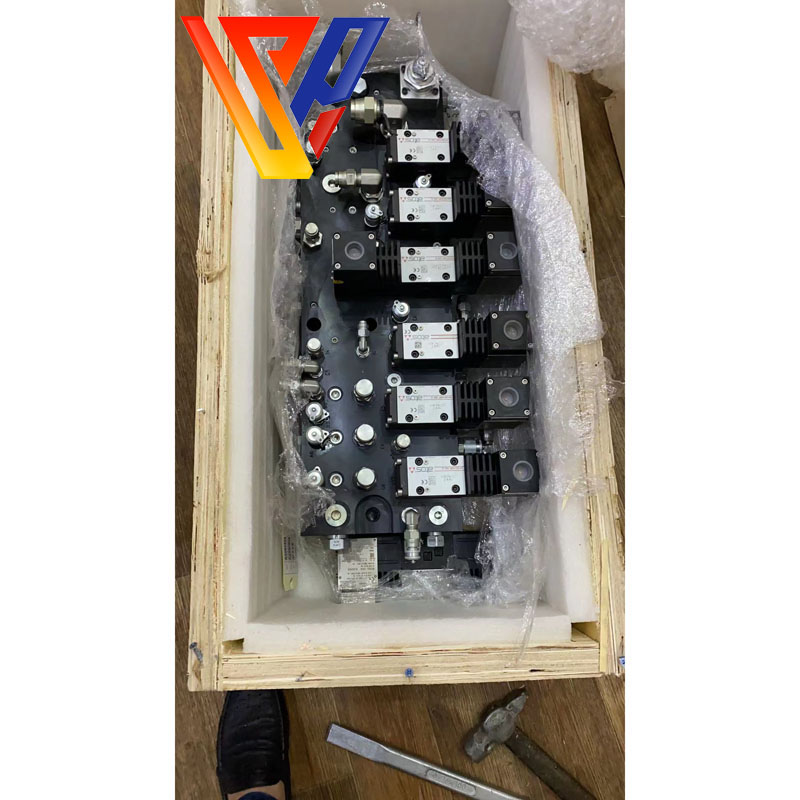

What is a Top Drive Valve Plate?
The Valve Plate is a precision-machined core module inside the Top Drive, typically made from high-strength alloy steel. It incorporates complex internal flow channels and multiple sets of control valve ports. Its primary function is to precisely direct high-pressure hydraulic fluid flow to control critical Top Drive functions, including:
- Main Shaft Rotation & Speed Control: Controls hydraulic motors to achieve stepless speed regulation and powerful torque output for the drill string.
- Make-Up & Break-Out of Drill String: Controls the interplay of the torque tongs and spinning wrench to automate the connection and disconnection of drill pipes.
- Braking & Locking: Manages the safety brake system to ensure operational security.
- Circulation System Management: In some designs, it also participates in managing drilling fluid flow.
Advantages of Our Valve Plate Products
1. Superior Durability & Wear Resistance
Utilizes high-quality surface treatments (such as nitriding, hard chrome plating, etc.) to significantly enhance the surface hardness and wear resistance of the valve plate. Effectively withstands erosion from particles in the hydraulic fluid and wear from prolonged operation, extending service life.
2. High Precision & Stability
Machined using advanced CNC equipment and precision grinding machines to ensure that every internal flow channel and valve port meets micron-level tolerances. This guarantees precise response in hydraulic control and minimal internal leakage, resulting in smooth, efficient Top Drive operation and eliminating malfunctions.
3. Excellent Sealing Performance
The combination of precise dimensional tolerances and high-quality sealing components (such as O-rings, Glyd rings) ensures excellent sealing integrity even under maximum working pressure, preventing leaks and maintaining system efficiency.
4. Wide Compatibility
We provide compatible Valve Plates or repair services for various mainstream Top Drive systems (e.g., NOV, Canrig, Tesco, Honghua). Whether for new part replacement or old part refurbishment, our products deliver performance that matches original system specifications.
5. Comprehensive After-Sales Service & Technical Support
We not only supply high-quality products but also offer professional technical consultation, fast delivery, and on-site support. Our engineering team can help diagnose issues, ensuring your equipment maintains optimal performance.
Post time: Sep-19-2025
