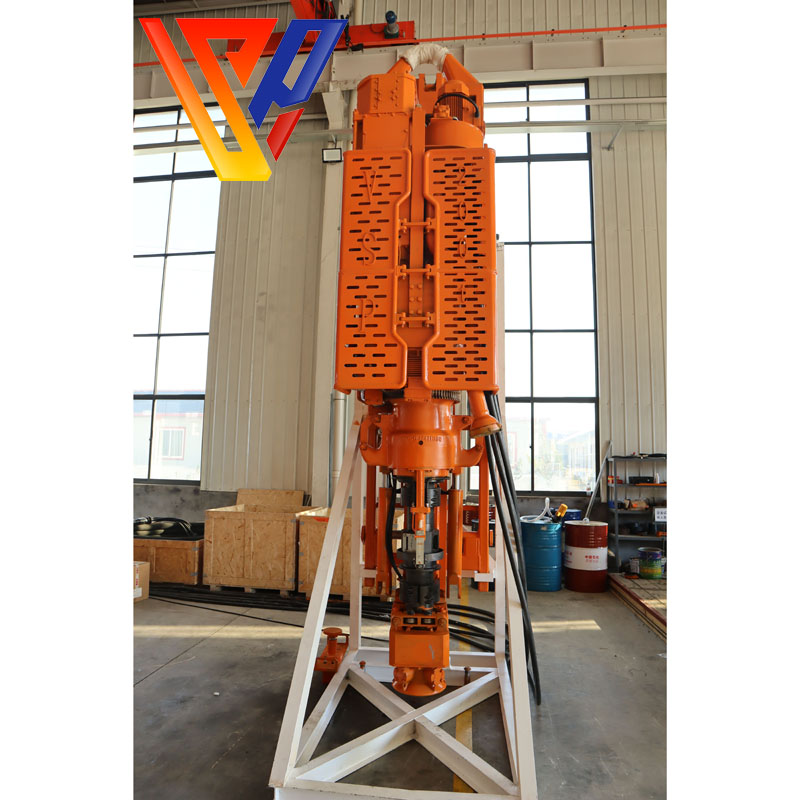

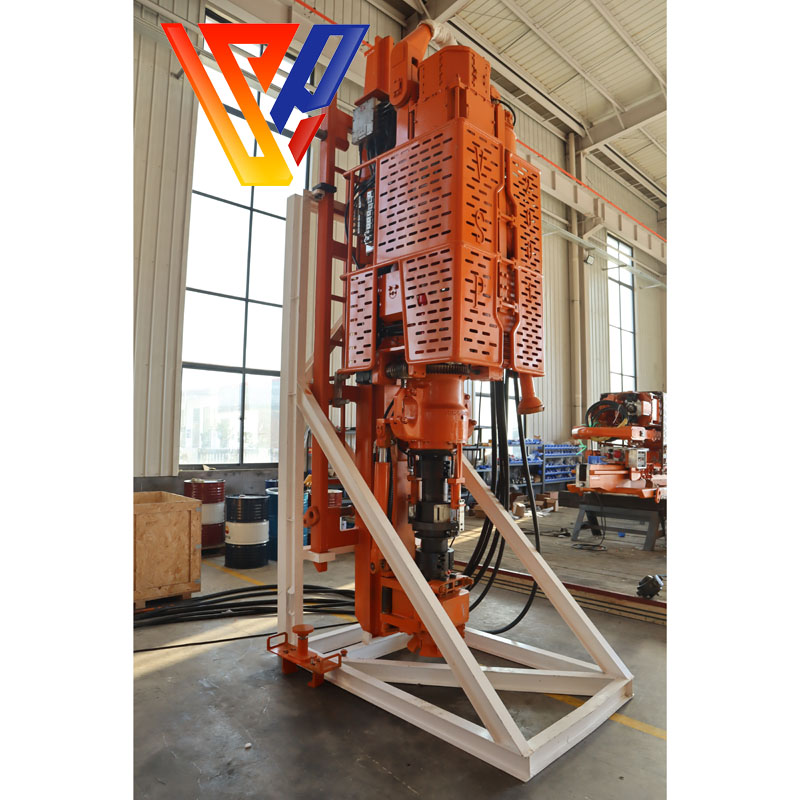

DQ30B Top Drive System: Redefining Drilling Efficiency and Reliability for 3000-Meter Deep Wells

In high-intensity drilling operations, equipment performance directly determines project profitability. The DQ30B Top Drive System integrates cutting-edge technology with robust quality to deliver an efficient, stable, and safe power solution for 3000-meter deep well exploration.

Core Advantages

• Powerful Performance & Precise Control

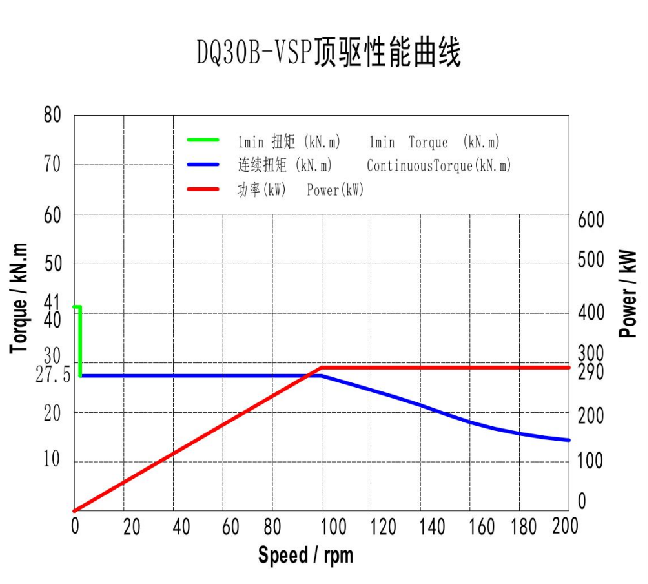

  With a rated continuous output torque of 27.5 KN.m and a maximum break-out torque of 41 KN.m, combined with a 0–200 r/min stepless speed regulation spindle, it easily handles complex formations and efficient tripping operations. The main motor’s 290KW rated power ensures consistent and stable power output.
• Exceptional Load Capacity & Safety Assurance
  An 1800 KN rated load and 27.5 KN.m static maximum braking torque, paired with a 105 MPa high-pressure IBOP (hydraulic/manual dual mode), significantly enhance well control safety. The back clamp accommodates 85–187mm drill pipes, offering a wide clamping range and flexible operation.
• Efficient Mud Circulation & Compact Design
  The mud circulation channel’s rated pressure reaches 35/52 MPa in dual modes, meeting high-pressure circulation demands. With only 502.5mm between the spindle center and guide rail center, the compact structure optimizes derrick space. Overall dimensions of 4156mm × 970mm × 1200mm adapt to confined rig environments.
• Extreme Environment Adaptability
  From -45℃ extreme cold to 55℃ high temperatures, the DQ30B maintains stable operation. The hydraulic system operates at 0–14 MPa, and the electric control room supports 600 VAC/50Hz input, compatible with global mainstream oilfield power standards.

Application Scenarios
Ideal for onshore and offshore platform medium-depth wells and directional drilling, particularly suited for 3000-meter drilling depth requirements with 114mm drill pipes. It is the optimal choice for improving drilling efficiency and reducing overall costs.

Choose DQ30B, Choose Superior Returns
Achieve higher drilling efficiency with lower energy consumption and ensure longer operational cycles with reduced maintenance costs. DQ30B – Empowering every drill to reach the target depth, steadily and successfully.
