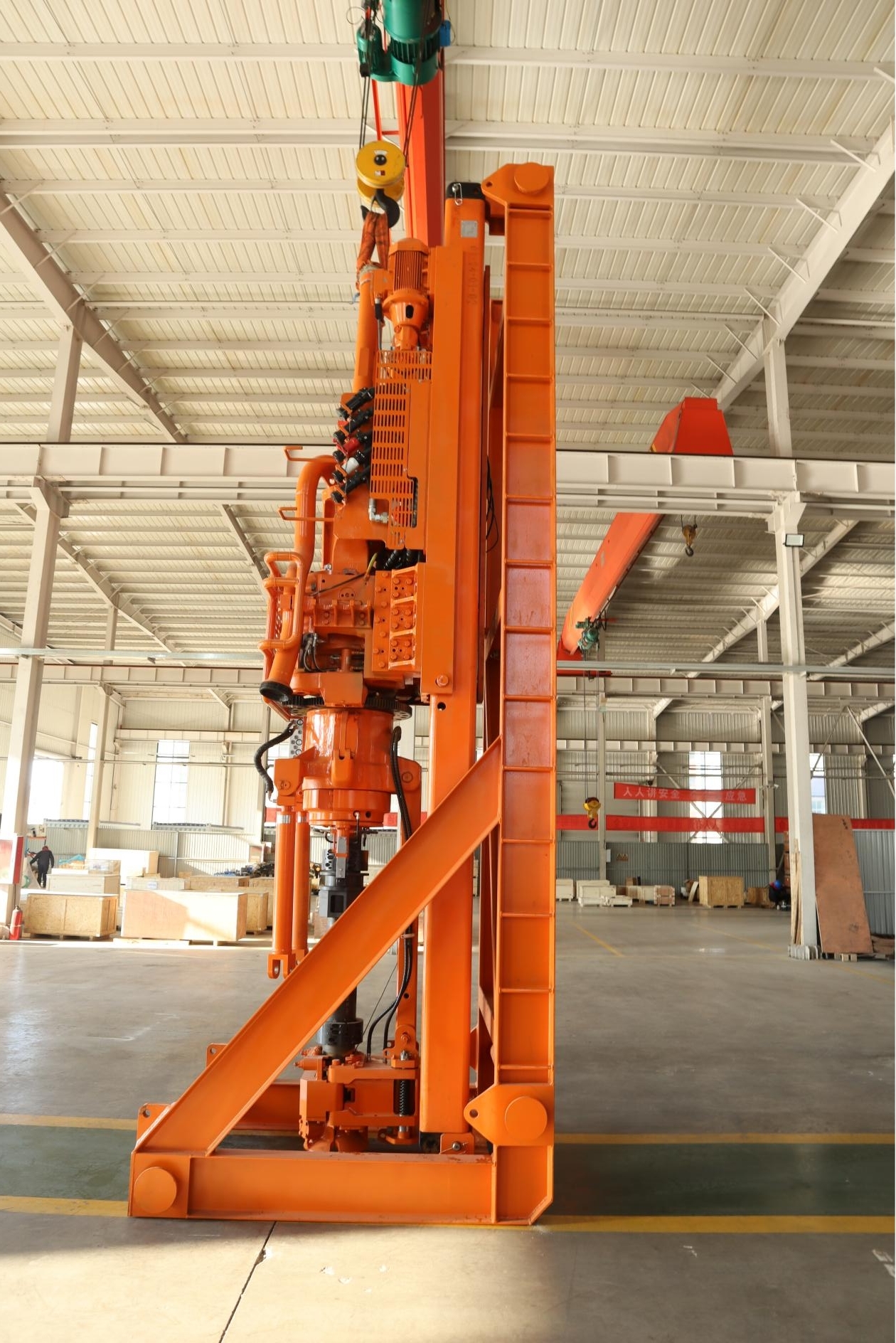

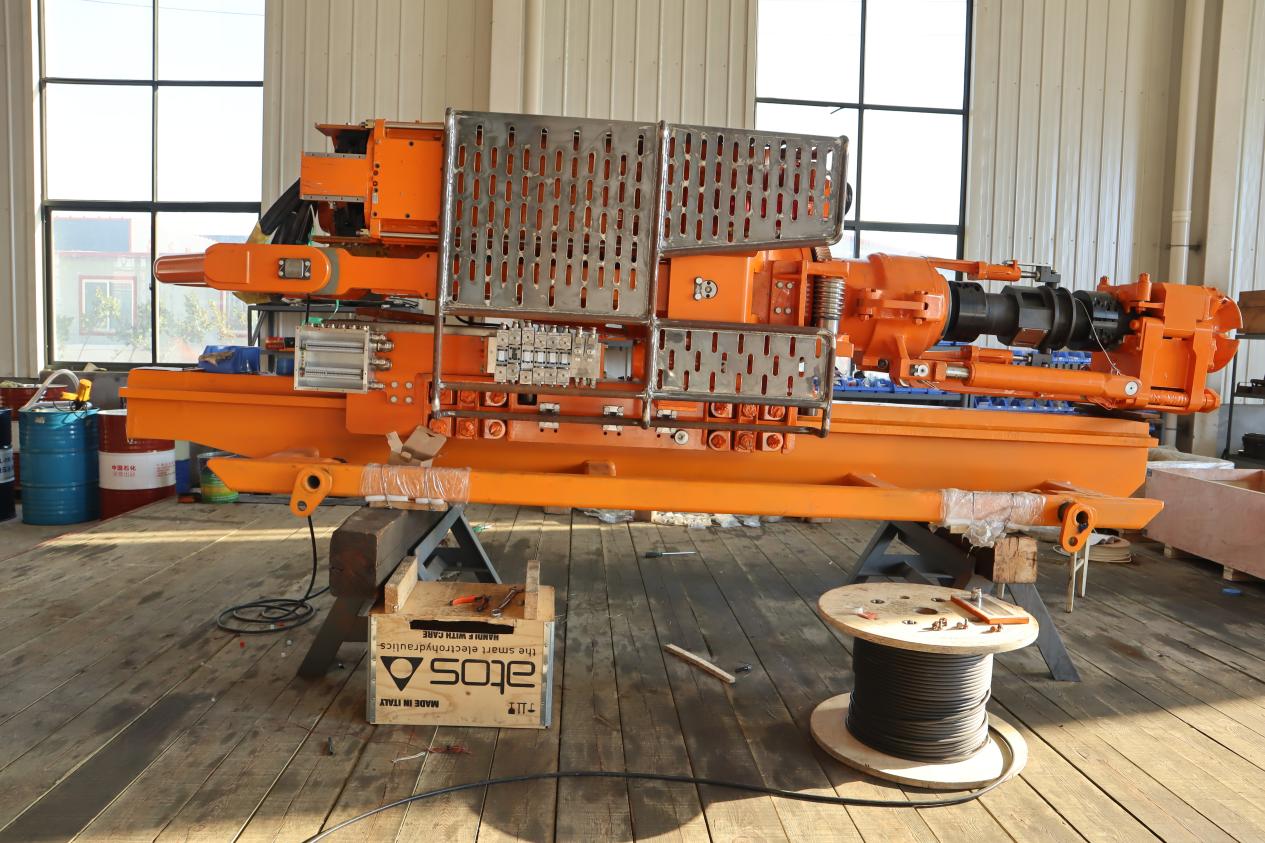

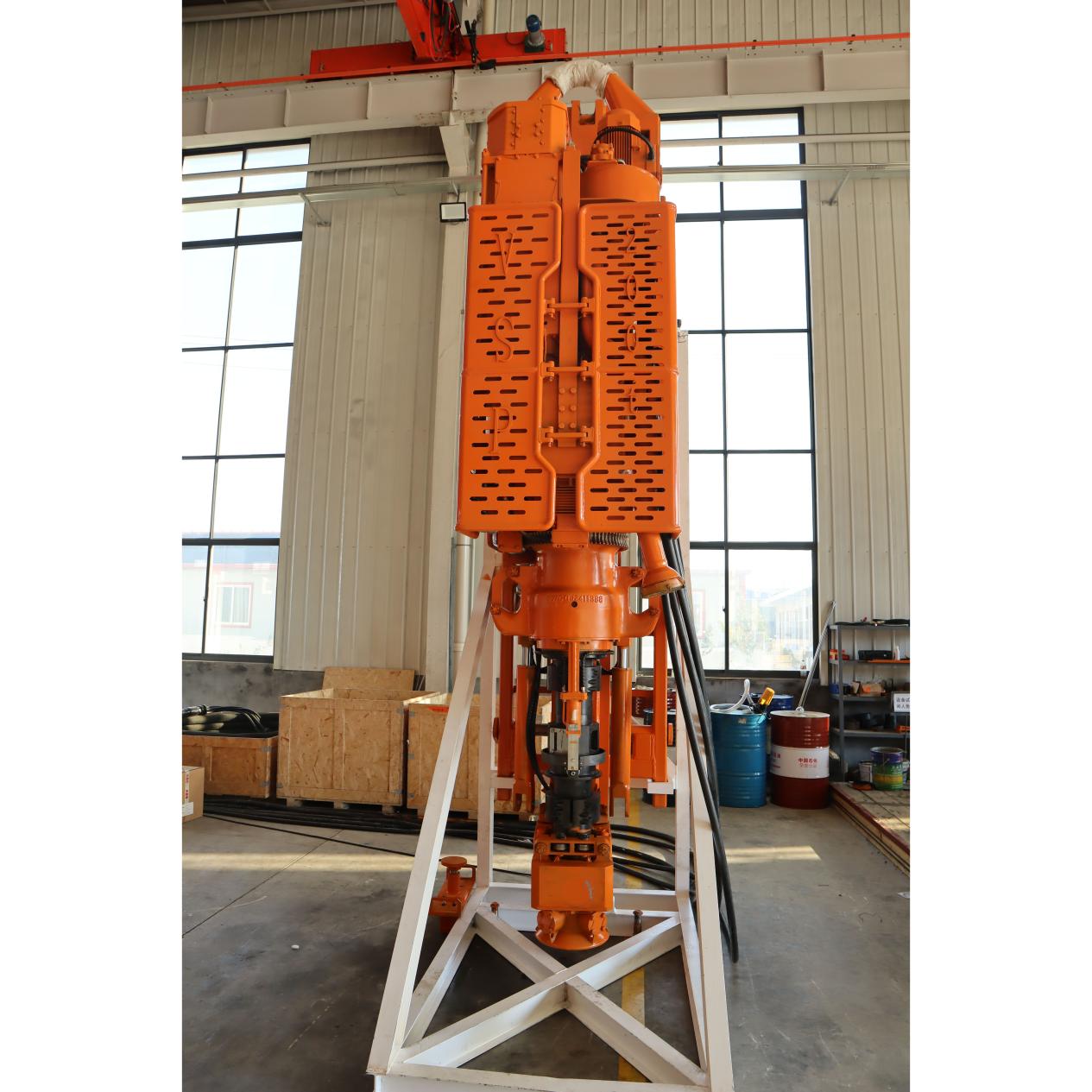

Elevate your drilling performance with the DQ30B Top Drive System, engineered to deliver exceptional efficiency and control for wells up to 3,000 meters (with 114mm drill pipe). Designed for rugged reliability and operational flexibility, the DQ30B is the ideal solution for a wide range of drilling applications.
Key Features & Benefits:
Optimized for 3,000m Depths: Expertly engineered to provide maximum performance and reliability for intermediate-depth drilling operations.
Superior Load & Torque Handling: With a 1,800 KN rated load and 27.5 KN.m continuous output torque, this system ensures powerful and consistent performance. The 41 KN.m maximum breakout torque delivers efficient pipe handling and connection reliability.
Precision Rotation & Speed Control: An infinitely adjustable main shaft speed range of 0-200 RPM combined with a 360° rotating link adaptor provides unparalleled precision for wellbore positioning and drilling optimization.
Robust Mud Circulation: The mud circulation channel, rated at 35/52 MPa, along with a 105 MPa IBOP (Hydraulic/Manual), ensures safe and reliable performance in high-pressure drilling environments.
Versatile Clamping Capability: The back clamp accommodates drill pipes from 85mm to 187mm, offering exceptional flexibility across different drilling setups.
Post time: Aug-20-2025
