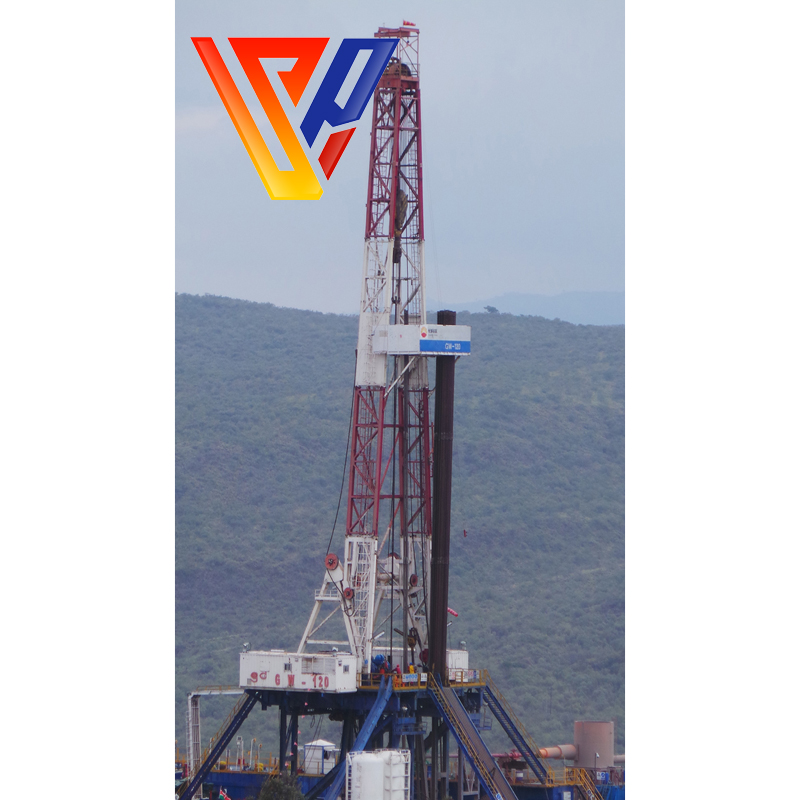

High-Capacity Automated Computerized ZJ40 ZJ50 ZJ70 Module Drilling Rig
SHANDONG VS PETROLEUM TECHNOLOGY CO.,LTD. is the high- new technique enterprise that is specialized in designing ,manufacturing, matching and service for petroleum drilling rigs. The company was founded in the year of 2010 with 50 million RMB registered capital. After nearly 10 years of development by leaps and bounds, Haixin has developed into a petroleum equipment enterprise, with an area more than 333,333 square meters and over 400 staff, which owns about 120 sets of processing equipment, over 20 scientific payoffs and 500 million annual value of production.
For the Drilling rig, we listed the main model of the Land drilling rigs.
|
Type |
ZJ40/2250DZ |
ZJ50/3150DZ |
ZJ70/4500DZ |
ZJ90/6750DZ |
|||
|
Nominal drilling depth（114mm drill pipe） |
2500—4000 |
3500—5000 |
4500—7000 |
6000—9000 |
|||
|
Max. hook load, KN |
2250 |
3150 |
4500 |
6750 |
|||
|
Max. line number of traveling system |
10 |
12 |
12 |
14 |
|||
|
mm(in) Drilling wire Dia. |
32(1 1/4) |
35 (1 3/8) |
38(1 1/2) |
45(1 3/4) |
|||
|
Sheave OD of traveling system |
1120(44) |
1270(50) |
1524(60) |
1524(60) |
|||
|
Swivel stem through-hole Dia. |
75(3) |
75(3) |
75(3) |
102(4) |
|||
|
Rated power of drawwork KW(hp)
|
735(1000) |
1100(1500) |
1470(2000) |
2210(3000) |
|||
|
Drawwork shifts |
4 |
4 |
4 |
4 |
|||
|
Opening Dia. of rotary table |
698.5(27 1/2) |
698.5(27 1/2) |
952.5(37 1/2) |
952.5(37 1/2) |
952.5(37 1/2) |
1257.3(49 1/2) |
|
|
Rotary table shifts |
2 |
2 |
2 |
2 |
|||
|
Single mud pump power |
960(1300) |
960(1300) |
1180(1600) |
1180(1600) |
1620(2200) |
||
|
Mast working height |
43(142) |
45(147) |
45(147) |
48(157) |
|||
|
Drill floor height |
7.5(25) |
7.5(25) |
9(30) |
9(30) |
10.5(35) |
10.5(35) |
12(40) |
|
Clear height of drill floor |
6.26(20.5) |
6.26(20.5) |
7.62(25) |
7.42(24.5) |
8.92(29.5) |
8.7(28.5) |
10(33) |
|
Note |
DZ——DC drive drilling rig |
||||||
Chief outstanding achievement and photos of representative products
1、ZJ20J drilling rig works in coal bed methane well
2、ZJ30/1700CZ vehicle mounted drilling rig works in geothermal well Tianjin
3、ZJ40LDB drilling rig works in Shengli oilfield
4、ZJ50J drilling rig works in Ordos, Inner Mongolia
5、ZJ50JDB drilling rig works in Karamay,Xinjiang
6、ZJ50LD Low temperature drilling rig works in Tomsk,Russia
7、ZJ50D drilling rig works in Liby
8、ZJ70LD drilling rig works in Turkmenistan
9、ZJ70LDB drilling rig works in Tarim,Xinjiang
10、ZJ70LDB drilling rig works in Shanbei(Derrick bottom crotch is 10m)
11、ZJ70D drilling rig works in Tongliang,Chongqing
12、ZJ70D drilling rig works in Fukang,Xinjiang(the height of drilling floor is 12m)
13、ZJHY70 Module Drilling used in East sea
|
Drilling rig model |
ZJ40CJD |
ZJ40J |
ZJ40L |
ZJ40D |
|
|
Nominal drilling depth, m |
5in DP |
1900～3200 |
|||
|
|
41/2in DP |
2500～4000 |
|||
| Max. hook load, kN |
2250 |
||||
| Line strung of hoisting system |
5×6 |
||||
| Wire line dia., mm |
Φ 32 |
||||
| Max. pull of fastline, kN |
280 |
||||
| Max. input power of drawworks, kW |
735 |
||||
|
Drawworks speeds |
4+4R |
4+4R |
4+4R |
4F+4R Smooth change |
|
| Primary brake |
EATON brake |
Hydraulic disc brake |
Hydraulic disc brake |
Hydraulic disc brake | |
| Aux. brake |
EATON brake |
Eddy brake |
Eddy brake |
Eddy brake |
|
| Drum size (D×L), mm |
Φ660×1170 |
||||
| Hook hoisting speed, m/s |
0～1.52 |
0～1.1 |
0～1.41 |
0～1.5 |
|
| Opening of rotary table, mm |
698.5 |
||||
| Rotary table Speeds |
Smooth change |
4+4R |
4F+4R |
4+4R Smooth change |
|
| Rated input power of rotary table, kW |
437 |
300 |
300 |
437 |
|
| Max.static load of rotary table, kN |
2250 |
||||
| Max. torque of rotary table, N.m |
27500 |
||||
| Rotary table speed, r/min |
Smooth change |
0～141 |
0～175 |
Smooth change |
|
| Mast type |
Vertical erecting |
K-type |
|||
| Mast effective height, m |
43 |
||||
| Height of monkey board, m |
24.5、25.5、26.5 |
||||
| Monkey board capacity (41/2” DP),m |
4000 |
||||
| Substructure type |
Jackknife |
Box on box |
Box on box |
Slingshot |
|
| Drill floor height, m |
7.5 |
7.5 |
7.5 |
7.5 |
|
| Drill floor area(L×W), m |
11.35×8.1 |
10.7×9.4 |
10.8×9.5 |
10.8×9.5 |
|
| Clear height under rotary beam, m |
6.3 |
6.3 |
6.3 |
6.3 |
|
| Description | Mechanical & electric compound drive;Rotary table independent drive;Vertical erecting mast;Jackknife substructure; Low position drawworks;Fast line sheave guide.Front and rear floor can easily separate to meet cluster oil well operation. | Low position drawworks;Cardan shaft drive rotary table;Friction clutch shift speed. Main brake is hydraulic disc brake. | Integral chain compound transmission;Drawworks, rotary table and mud pump driven by hydraulic compound transmission; Friction clutch shift speed;Cardan shaft drive rotary table. | AC-SCR-DC, one to two, digital electric control system; Drawworks, rotary table and mud pump can realize smooth speed change to provide good operation character,Start smooth and steady, high efficiency, and distribute load automatically. | |
Shandong VS petroleum also supply the Top Drive and it’s spare parts;
Based on rich experience in maintenance for Top Drives of various models of international brands and many years of production and sales experience,now HERIS is launching a new project that integrates design, manufacturing, sales, and technical services—Our own Top Drive System; DQ20B-VSP,DQ30B-VSP,DQ30BQ-VSP,DQ40B-VSP, DQ50B-VSP, DQ50BQ-VSP, DQ70BS-VSP ,which are suitable for various types of drilling rigs.
|
Model |
Rated Drilling Depth m |
Maximum load KN |
Operating torque kN.m |
|
DQ20B-VSP |
2000m |
1350KN / 150 US tons |
27.5 KN.m |
|
DQ30B-VSP |
3000m |
1800KN / 200 US tons |
27.5 KN.m |
|
DQ30BQ-VSP |
3000m |
1800KN / 200 US tons |
27.5 KN.m |
|
DQ40B-VSP |
4000-4500m |
2666KN / 300 US tons |
50kN.m |
|
DQ50B-VSP |
5000m |
3150KN / 350 US tons |
51kN.m |
|
DQ50BQ-VSP |
5000m |
3150KN / 350 US tons |
70kN.m |
| DQ70BS-VSP | 7000m | 4500KN / 500 US tons | 78kN.m |
| DQ–Top Drive System,Abbreviation for Chinese Alphabetic | |||
| B–AC Frequency Conversion Drive system | |||
| S–Dual Motor Drive | |||
| Q–Enhanced | |||
Welcome to contact us, happy to share more information.
